Product overview:

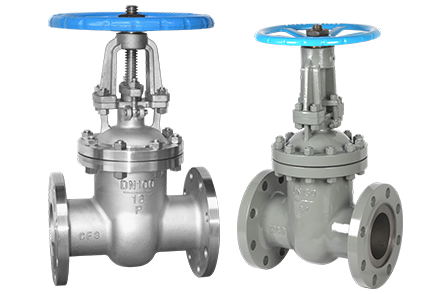

 The gate valve is a kind of linear shut-off valve that controls the opening and closing of the fluid through the vertical lifting of the gate plate (valve core) along the center line of the valve seat. It is a forced sealed valve and is widely used in industrial pipeline systems. It is used to cut off or connect media (liquid, gas, steam, etc.), and is not suitable for regulating the flow.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

 Globe valve, also known as cut-off valve, is a forced sealing valve, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface from leaking. When the medium enters the valve from under the disc, the resistance that the operating force needs to be overcome is the friction of the stem and the filler and the thrust generated by the pressure of the medium. The force of closing the valve is greater than the force of opening the valve, so the diameter of the stem is large, otherwise the top bending of the stem will occur. According to the connection method, it is divided into three types: flange connection, wire buckle connection, and welding connection.

 Commonly known as: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

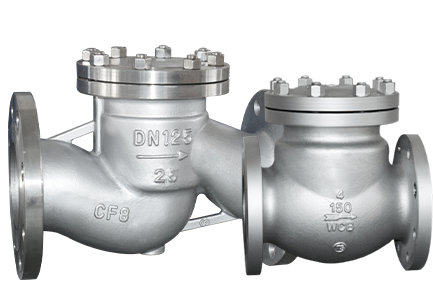

 A check valve is a valve in which the opening and closing part is a round disc and acts on its own weight and medium pressure to block the backflow of the medium. It belongs to automatic valves, also known as check valves, shunt valves, return valves or isolation valves.

 The filter is an indispensable device on the pipeline of the conveying medium. It is usually installed on the inlet end equipment of pressure relief valves, pressure relief valves, water level valves, and other equipment of the square filter.

 Common meridians: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

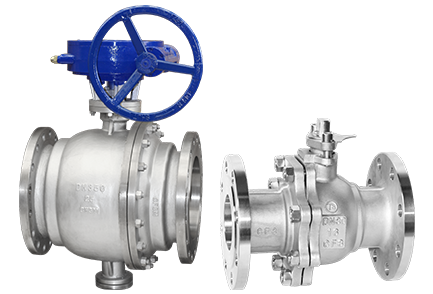

 Ball valve is a commonly used fluid control valve. Its closing part (ball) rotates around the center line of the valve body to open and close. It has the characteristics of small flow resistance, good sealing performance and convenient operation.

 Pneumatic ball valves and electric ball valves are ball valve types driven by compressed air and electricity respectively, which are widely used in petroleum, chemical industry, water treatment, food and medicine and other industrial fields.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

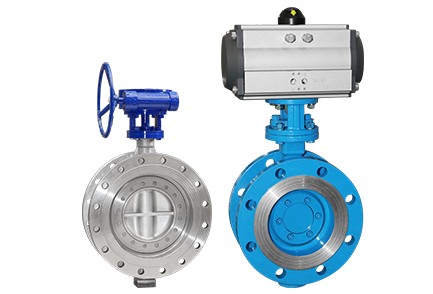

 Butterfly valve, also known as flip valve, is a simple regulating valve, which can be used for switching control of low-pressure pipeline media. Butterfly valve refers to a valve that rotates around the valve shaft to open and close the valve (valve flap or butterfly plate) as a disc.

 Valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. It mainly plays the role of cutting and throttle on the pipeline. The butterfly valve opening and closing part is a disc-shaped butterfly plate that rotates around its own axis in the valve body to achieve the purpose of opening and closing or adjustment.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

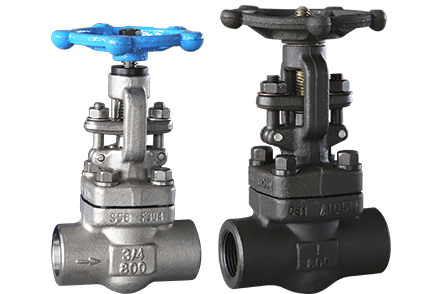

 Wrought steel valves are used for opening and closing parts for full opening and closing. This equipment is mainly suitable for pipelines of various systems of thermal power plants. It can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. Compared with other valve products, forged steel valves are characterized by high temperature and high pressure resistance and unique self-sealing design. The higher the pressure, the more reliable the sealing. Due to the performance, technical characteristics and special working conditions, the product has also formed characteristics that cannot be replaced by other products.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

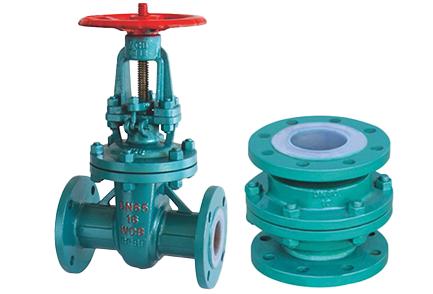

 Fluorine-lined valve, also known as fluoroplastic-lined corrosion-resistant valve, is a corrosion-resistant device made of fluoroplastics such as polytetrafluoroethylene lined on the inner wall of the valve through molding or injection molding. The main materials include polyfluoroethylene (FEP), polytrifluoroethylene (PCTFE), etc. This valve is produced by Anhui Fluoron, Fluorine and other enterprises. It is suitable for corrosive media environments such as strong acids, strong alkalis and organic solvents from -50℃ to 150℃. Common types include lined fluorine ball valves, shut-off valves, diaphragm valves, butterfly valves, etc.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

 The low-temperature valve is a special valve specially designed for the low-temperature working conditions of -40℃~-270℃. It is used for the storage, transportation and process control of low-temperature media (such as liquid oxygen, liquid nitrogen, liquid argon, liquefied natural gas LNG, liquefied petroleum gas LPG, etc.). The core functions include media cut-off, flow regulation, safety Full isolation, etc. Its design needs to solve key problems such as material embrittlement, sealing failure, medium gasification, icing and blockage at low temperatures. It is the core equipment in aerospace, petrochemical, energy, medical care and other fields.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K

Product overview:

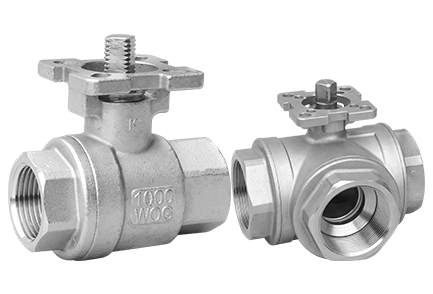

 Thread valve (also known as threaded valve) is a kind of cut-off and regulating valve widely used in industrial pipeline systems. It is connected to the pipe through the threaded structure at both ends of the valve body without welding or flange fastening. It has the core advantages of convenient installation, reliable sealing, low maintenance cost, etc., and is suitable for medium and low pressure, medium and small caliber. The fluid transportation scene.

 Common name: DN10mm~4000mm and 1/2"~160"

 Working pressure: 0.25MPa~76.0MPa/150Lb~4500Lb/10K~320K
